SPECIFICATIONS



Application: Back-up Power



Certification: CE

Current Rating: 21-30 A

Features: Corrosion Resistant,Indicator Light

Hoop Diameter: 2in/54mm

Installation Method: Assembly

Items: Wind Turbine Generator 500W

Net Weight: 21lb/9.5kg

Number of Blades: 5

Power: 451-500 W

Power Source: Wind

Rated Current: 29A

Rated Power: 500W

Voltage: 12V/24V(Auto)

Wattage: 400-499 W





Product Description











Tough Equipment & Tools, Pay Less

VEVOR is an innovative brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough and cost-effective equipment & tools. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

• Premium Tough Quality

• Cost-effective Products

• Fast & Secure Express

• 24/7 Online Support

500W Wind Turbine Generator 5 Blades

Efficient Generator & High-Quality Blade & Effortless Installation

This wind generator comprises a high-quality aluminum body, a stainless steel tail, and a nylon fiber blade. The turbine adopts a three-phase magnet motor, external MPPT controller, and installed hoop to provide you with high power efficiency and effortless installation. In addition, the turbine features low start-up speed, high wind energy utilization, low vibration, and a beautiful appearance, suitable for marine, boat, backyard, and other home charging usage.

• Excellent Generator

• Low Start-up Speed

• Easy Assembly

• High-quality Material



Key Features

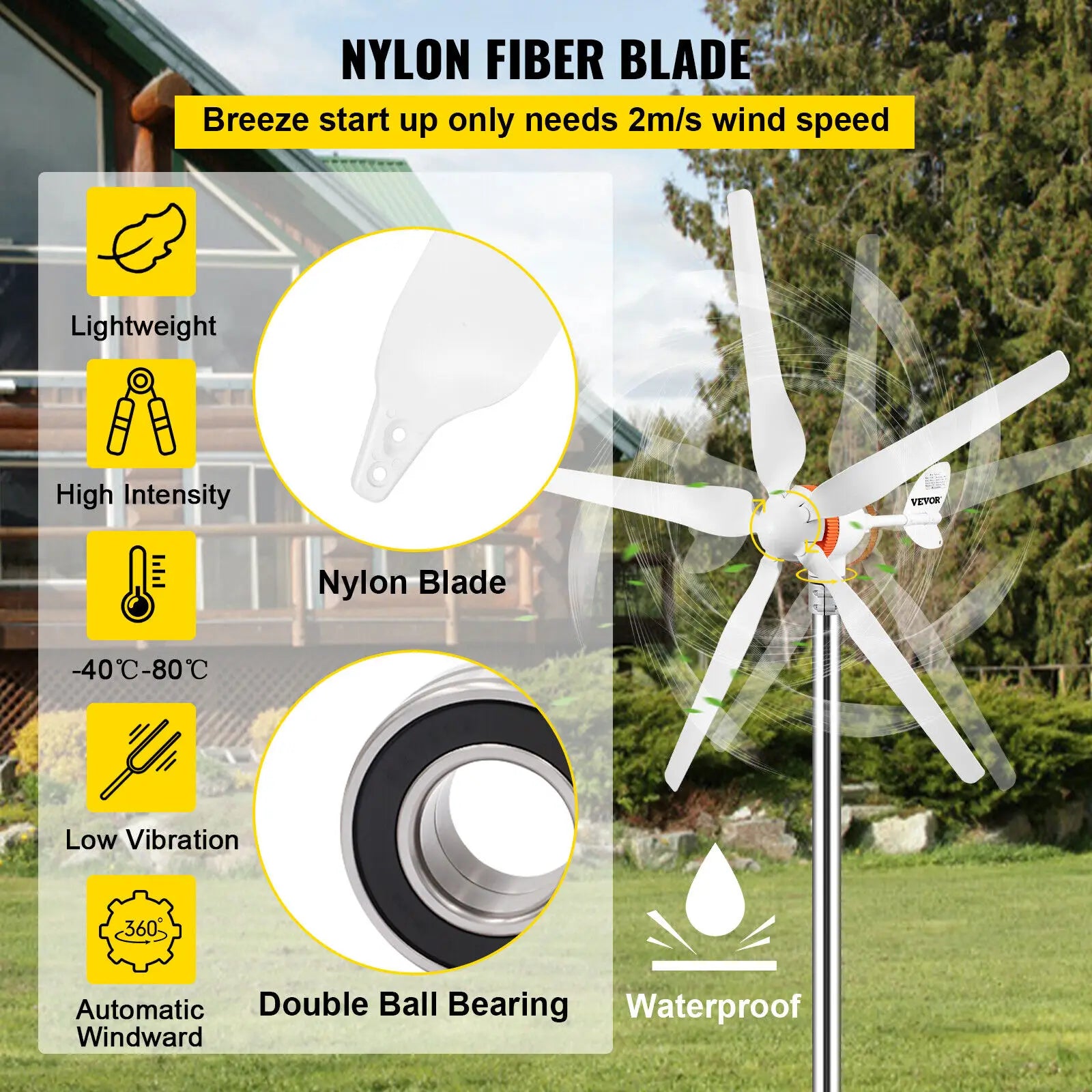

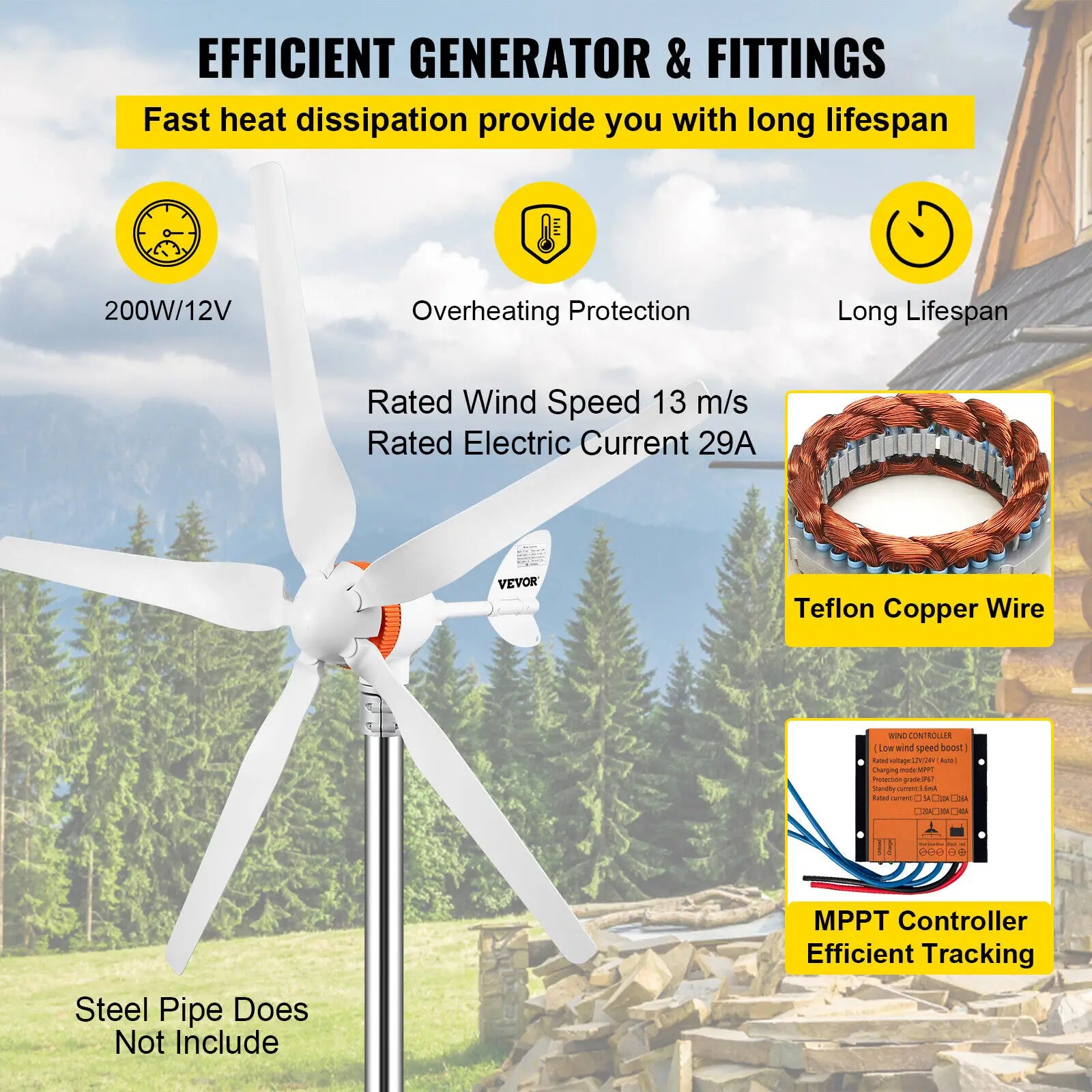

Efficient Generator Our windmill turbine adopts a three-phase synchronous motor with a high-performance NdFeB permanent magnet. The external MPPT controller and Teflon copper wire feature overheating protection. Meanwhile, the outer shell is designed for fast heat dissipation, provides you with long-term use.	High-Quality Blade The longer the turbine blade is, the more power it produces. The blade is made of nylon fiber, 47in/120 cm in rotor diameter. Nylon material features waterproof, corrosion-proof, and lightweight. In addition, the working temperature is -40℃~80℃, so you do not need to worry about using it under bad weather.	Effortless Installation Our wind power generator features hoop installation, double side blade design, and accurate hub & blade groove. This upgraded wind turbine provides you convenient and fast assembly, avoiding the wrong installation of flange type, saving more effort and time for you.



Low Wind Speed Start The windmill generator can start at a wind speed of 2 m/s, survive at 50 m/s. The blade features a yaw adjustment system. It can automatically adjust direction to capture the maximum wind energy. Also, with a double ball bearing design, the turbine will have low vibration when the blade is rotating.	Premium Material This home wind turbine is combined with a die-casting aluminum body and a stainless steel tail. The features are casting shape in one, high intensity. In addition, the surface of the turbine is finished with baking varnish, which features corrosion-proof, waterproof, and durable for a long lifespan.	Wide Application The small wind turbine generator kit can produce energy to meet your various charging requirements. Meanwhile, it is convenient to install and maintain, perfectly suitable for charging needs of home monitoring, motor home, boats, gazebos, chalets, marine, etc.

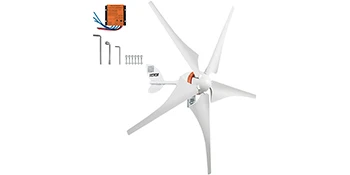

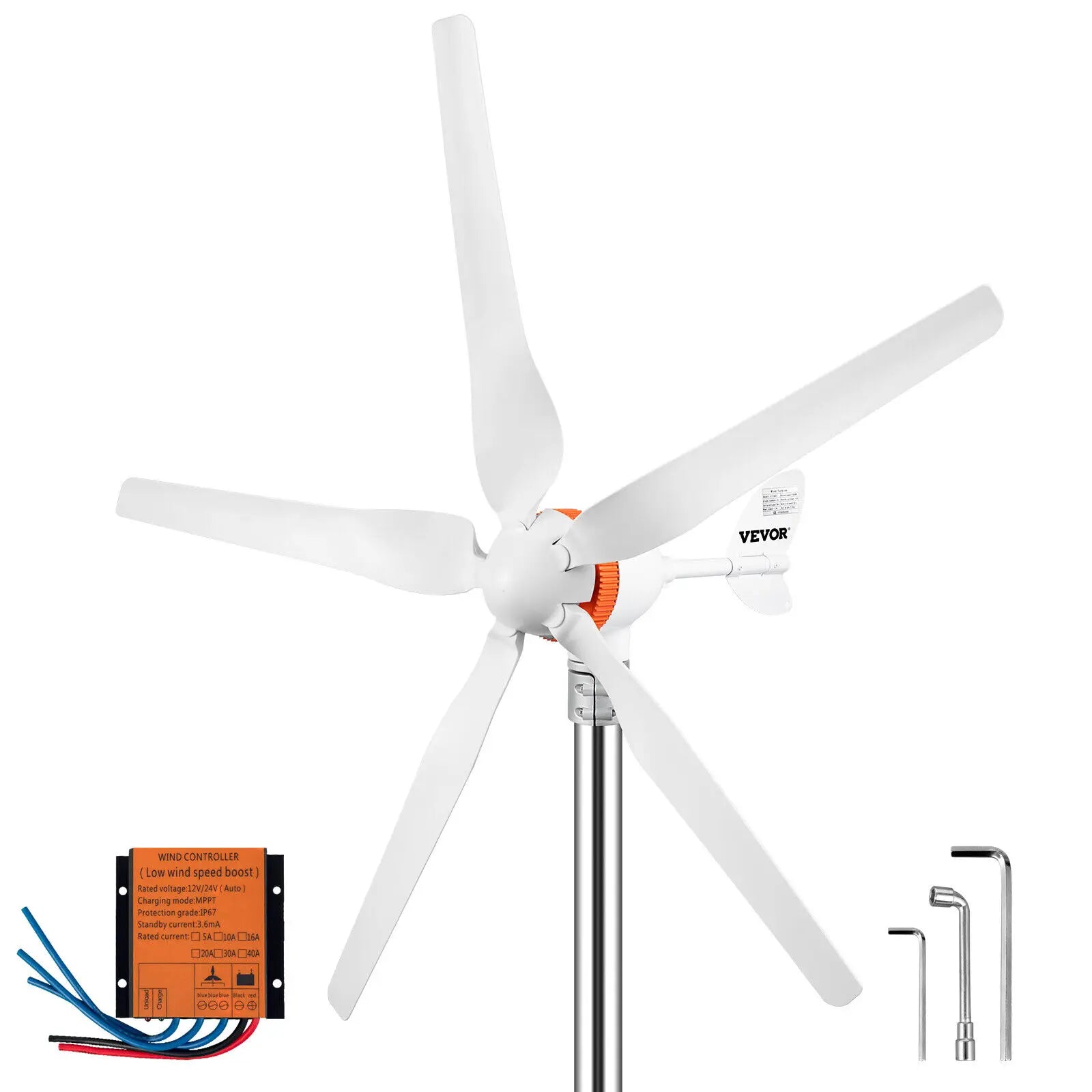

Package Content

• 1 x Wind Turbine Generator

• 1 x MPPT Controller

• 1 x Set Screws and Nuts

• 1 x Instruction Manual

• 5 x Nylon Blades

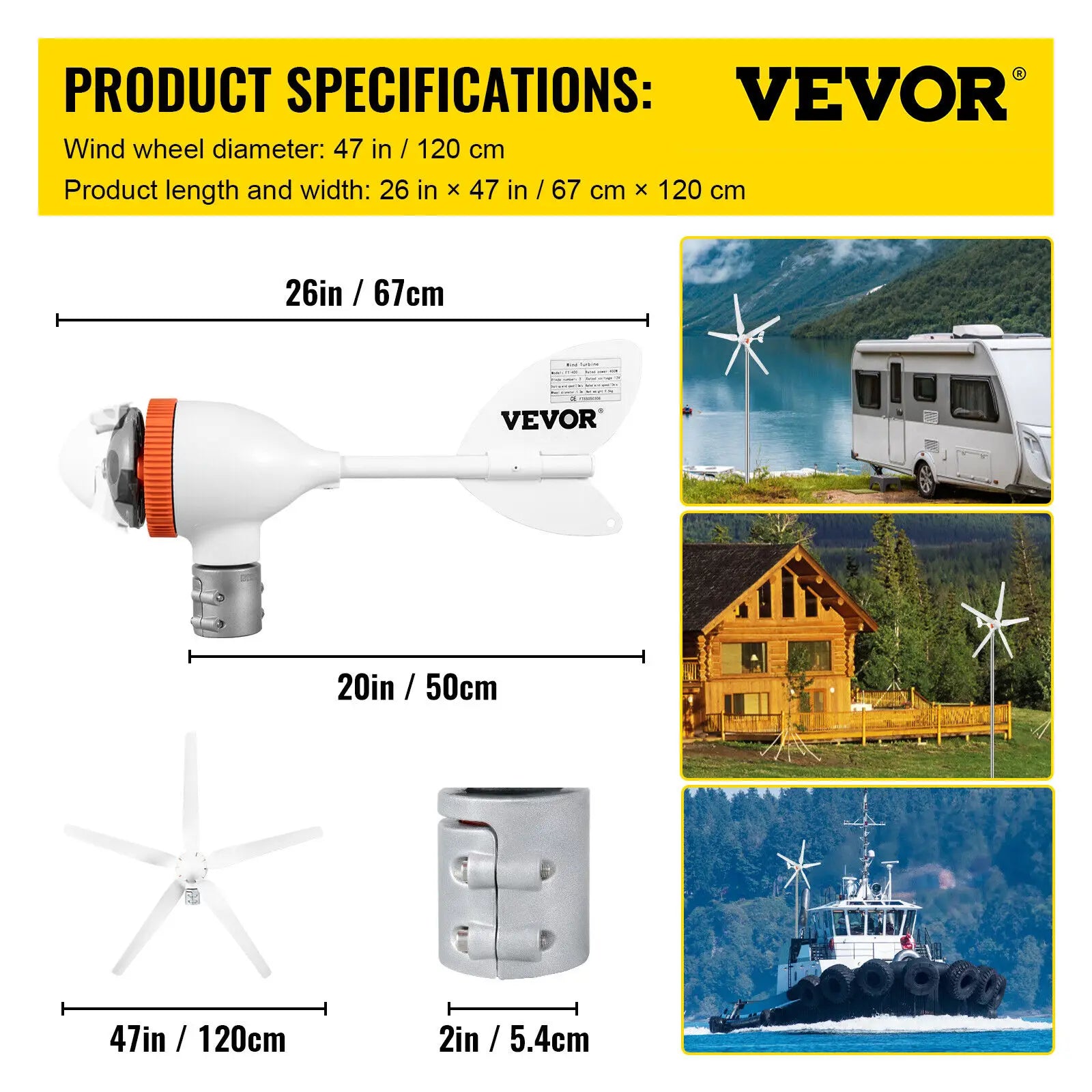

Specifications



• Model: VV-FLFDJ-S7-5Y500W12VKZQ

• Rated Power: 500W

• Rated Voltage: 12V/24V(Auto)

• Rated Current: 29A

• Hoop Diameter: 2in/54mm

• Rotor Diameter: 47in/1.2m

• Net Weight: 21lb/9.5kg

• Rated Wind Speed: 42.65ft/s(13m/s)

• Survival Wind Speed: 164ft/s(50m/s)

• Rated Speed: 900r/min
