SPECIFICATIONS

Displacement: 212cc

Material: Steel, and Aluminum

Max. Power: 4.3kW

Outdoor Activity: surfing

Recommended Fuel: # 92 Unleaded Gasoline

Speed: 3600RPM

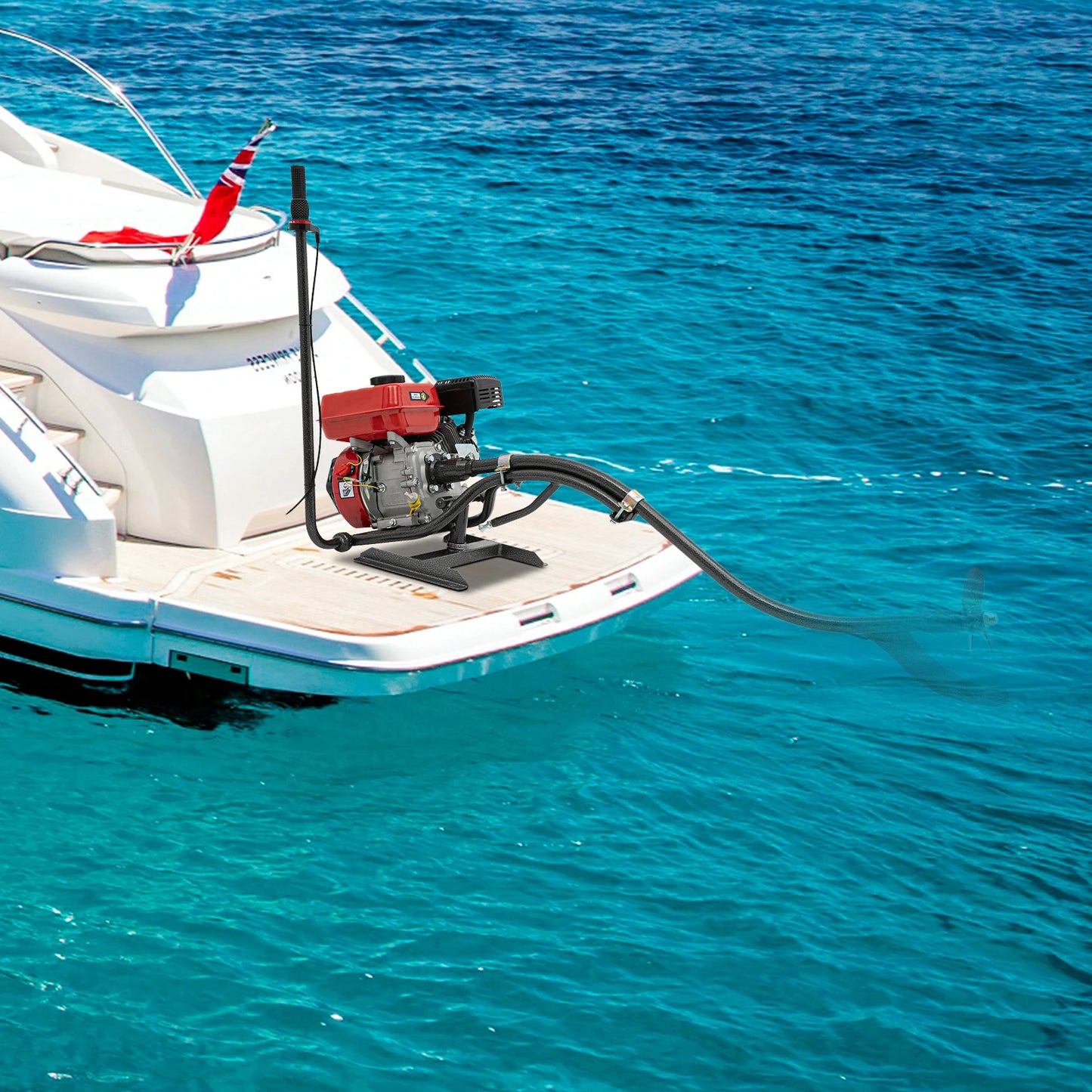

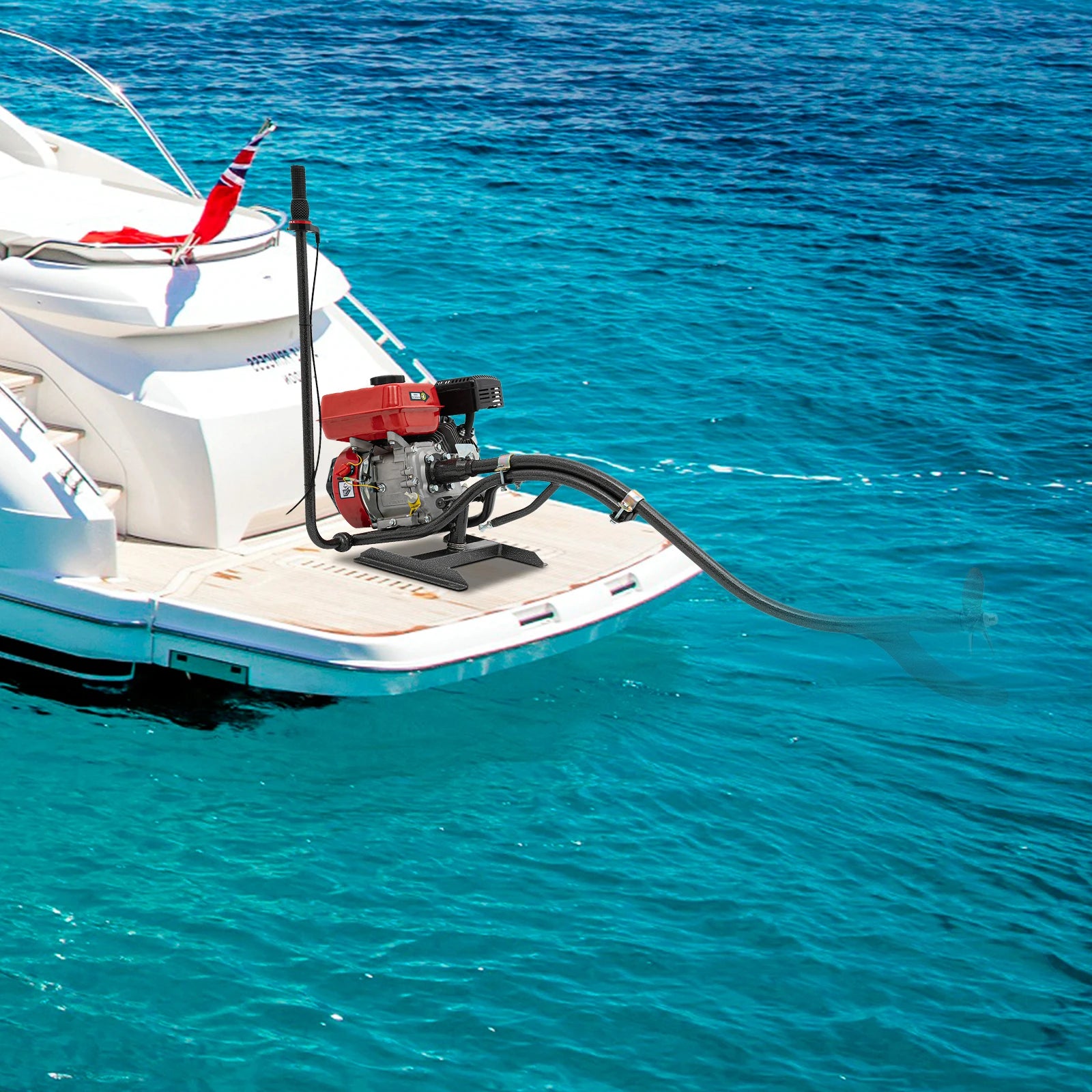

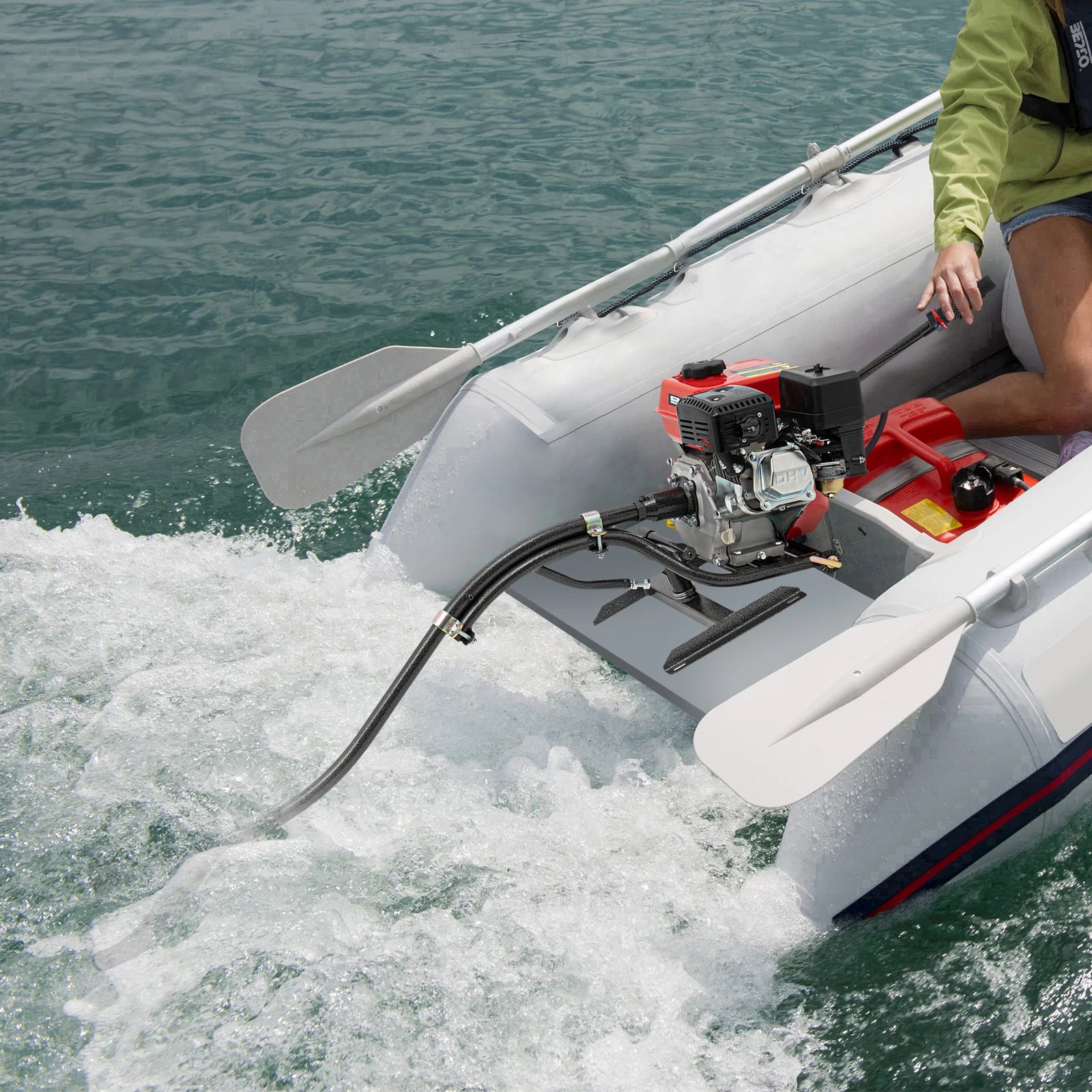

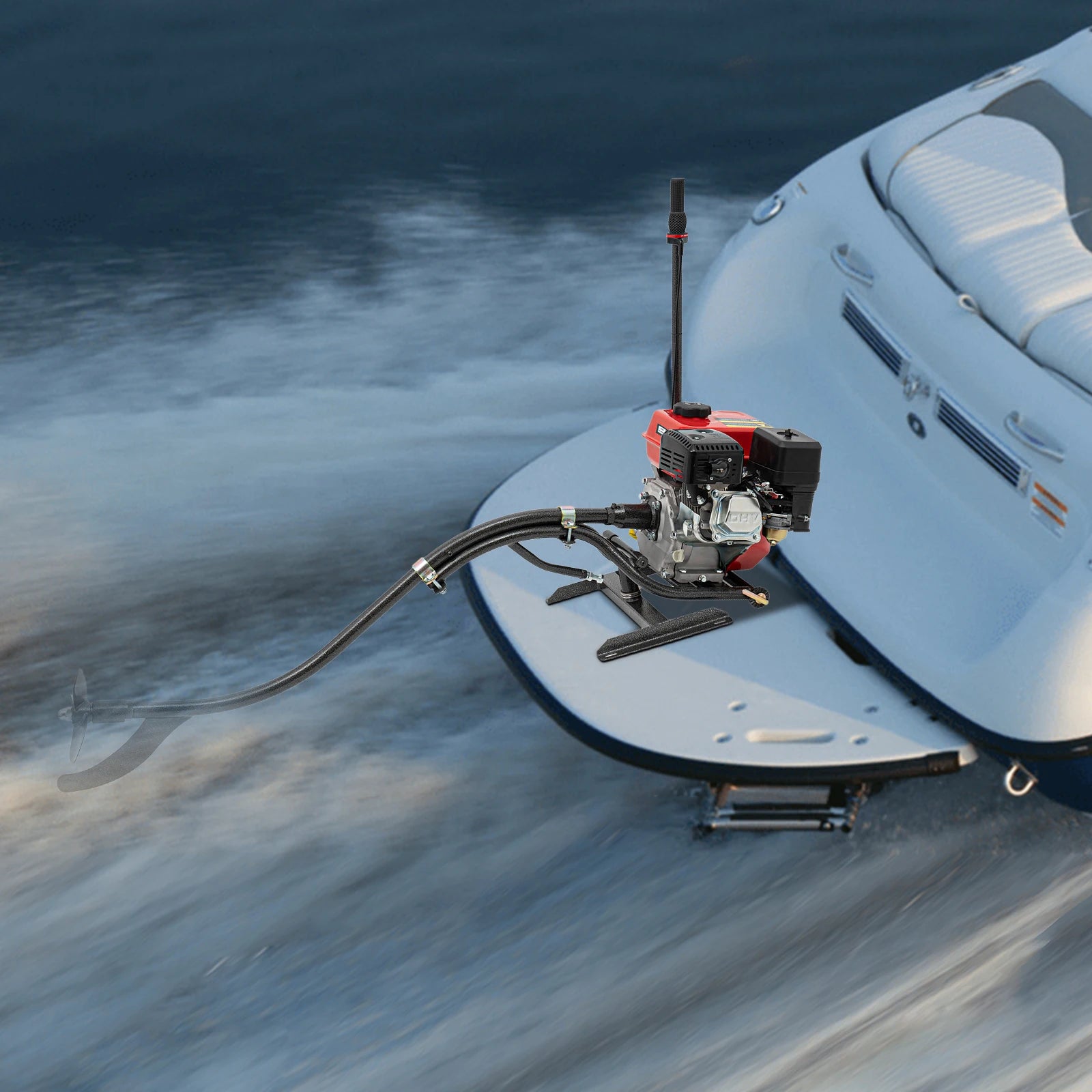

It is suitable for stern 9.84-19.69 feet in length dinghies, inflatables, fishing boats, sailboats, yachts, canoes, kayaks, rubber boats, aluminum boats, etc., to assist in aquaculture, water transportation, net fishing, baiting, outboard back-ups, outings, and river cleanup/maintenance.

Specification

Color: Black and Red
Material: Steel, and Aluminum
Process: Polishing, Spray Coating
Type: 4 Stroke
Horsepower: 7.5HP
Displacement: 212cc
Speed: 3600RPM
Start Method: Manual Start
Recommended Fuel: # 92 Unleaded Gasoline
Cooling System: Air-cooling
Ignition System: TCI
Rated Power: 4.0kW
Max. Power: 4.3kW
Fuel Consumption: ≤ 395g/0.87lbs/kW·h
Fuel Tank Capacity: About 3.6L/0.95gal
Turning Angle: 180 °
Endurance (Full Fuel): About 3 Hours or More
Operating Speed: ≥ 9.5km/5.9mi/h
Applicable Boat Size: 3-6m/9.84-19.69ft

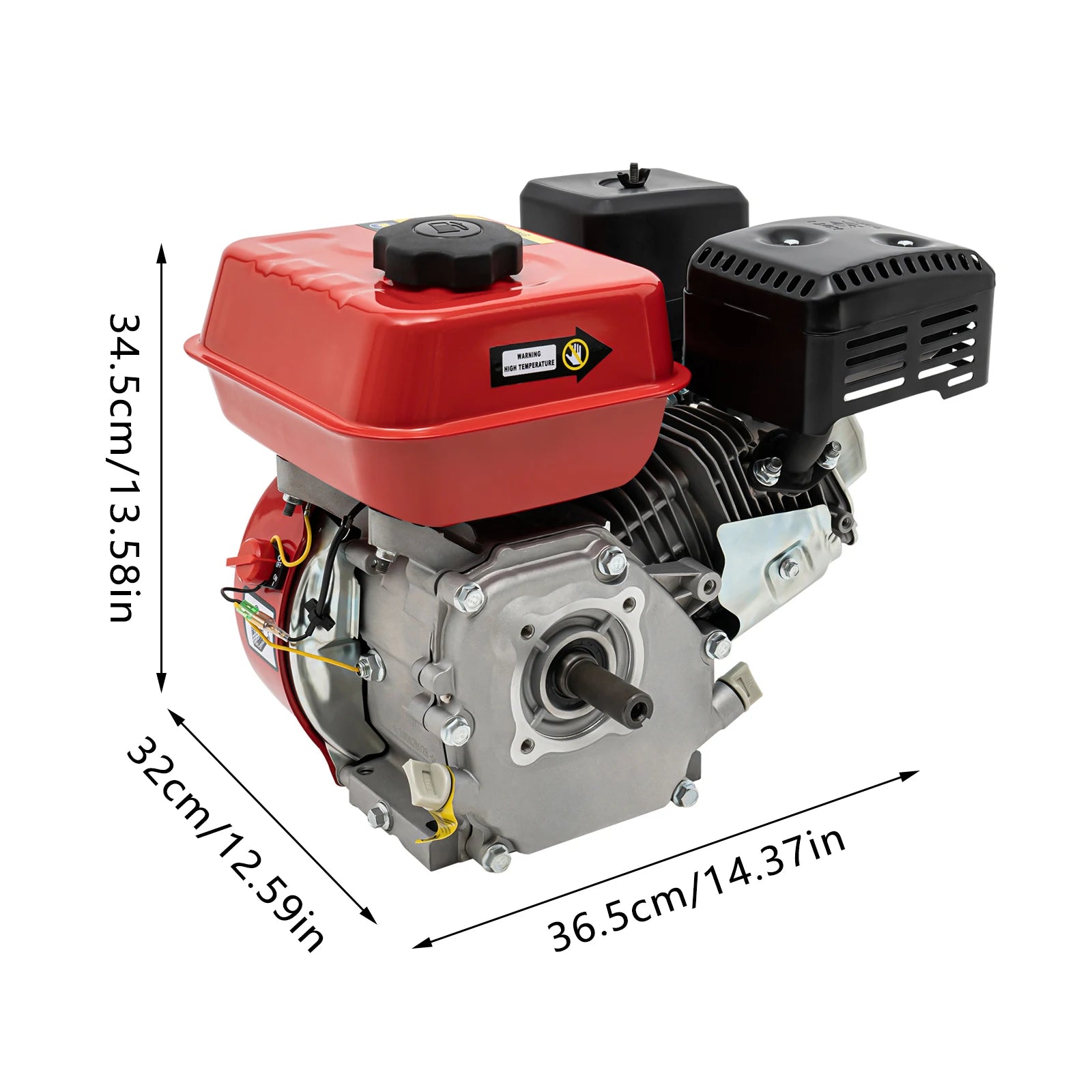

Product Size: 36.5*34.5*32cm/14.37*12.59*13.58in
Package Size: 39*34*40cm/15.35*13.39*15.75in
Gross Weight: 19kg/51.89lbs
Net Weight: 14.9kg/32.85lbs


Package Included
1*4-stroke Outboard Motor
1* English User Manual
Other Needed Accessories

Notes
1.Please prepare a boat motor mount or pegboard before use.
2.Please read the labeling on the product and the English user manual carefully before use and pay particular attention to the safety instructions contained therein.
3.Please be sure to start the machine in water. When the machine is running, please keep your hands, hair, and clothes away from the flywheel and other rotating parts.
4.Speed depends on many factors such as load, water conditions, and wind speed. It is difficult to give an exact speed rating, and we will only give the approximate reference speed.
5.Before storing for a long time, please use up the gasoline in the tank. The engine should be stored in a dry and well-ventilated place, avoiding direct sunlight.
6.The first 10 hours is the running-in period. After the running-in period, please replace the lubricating oil for the first use, and the gear oil in the propeller area must be replaced regularly.
7.Before leaving the factory, the engine oil (lubricating oil) in the machine has been drained and needs to be replenished before use. Please do not start without refueling.
8.Please note the oil should be of the specified model(4-stroke engine oil, replaced every 20h). After refueling, please do not place it horizontally as it can easily cause oil leakage.

Details

Sturdy Base: The thickened and enlarged base ensures stable support for the engine, so you can use it with confidence.

Large Fuel Capacity: The 0.95-gallon fuel tank capacity will give you long hours of use without frequent refueling.
